PiLock User Guide

PiLock-Dashboard-V1

Table of Contents

  1. Getting Started
  2. Settings Configuration
  3. Dashboard & Scene Configuration
  4. Advanced Features
  5. Basic Usage
  6. Frequently Asked Questions

Getting Started

First Run

  1. Plug your device into a standard USB power supply and wait for the PiLock WiFi network to appear (This may take up to 60 seconds)
  2. Connect to the PiLock WiFi network and wait for the captive portal page to appear. This may take up to 120 seconds, but you can also navigate directly by typing: http://192.168.4.1 (or the router address shown in your network info)
  3. Select your WiFi network (must be 2.4 GHz), enter your password, click “Connect” and wait a few minutes for the board to reboot and connect
  4. Reconnect your device to your home network, wait a minute for PiLock to finish booting, then navigate to: http://pilock.local:5001
    • If this doesn’t work, check your router’s device list to find the IP address, or use a local network scanner tool
  5. Done! PiLock will automatically connect to your configured network on future boots. If your network changes or connection fails, the WiFi portal will re-appear at boot

Settings Configuration

Before using PiLock, configure your device settings by clicking SETTINGS from the dashboard.

SwitchBot Account

What you need:

How to obtain SwitchBot credentials:

  1. Download the SwitchBot app and set up your devices
  2. Get API credentials:
    • Open the SwitchBot app
    • Navigate to: Profile → Settings → App Version (tap 10 times to unlock developer options)
    • Go back to: Profile → Settings → Developer Options
    • Copy your Token and Secret
  3. Find Device IDs:
    • In the SwitchBot app, tap a device
    • Go to Settings (gear icon) → Device Info
    • Copy the BLE MAC address (remove : characters)
    • Example format: F1377ACE514C

Configuration:

PiShock Account

What you need:

How to obtain PiShock credentials:

  1. Create a PiShock account at pishock.com
  2. Get API Key:
    • Log into your PiShock account
    • Navigate to: Account → API Key
    • Copy your API Key
  3. Get Share Codes:
    • In your PiShock account, select your device
    • Go to: Share Codes tab
    • Create or copy the Share Code for each device
    • Each device needs its own share code

Configuration:

Contact Sensors

Contact sensors trigger Scene Modifiers when opened (closed → open transition). You can use either physical SwitchBot Contact Sensors or trigger via API endpoints.

Option 1: SwitchBot Contact Sensors

Option 2: HTTP API Endpoints

Configuration:

Custom Accessories

Custom accessories allow you to integrate any HTTP API-based device or service into your scenes.

Configuration:

  1. Endpoint URL: The full HTTP API endpoint for your custom device
  2. Click PAYLOAD to configure:
    • API Method: GET, POST, PUT, PATCH, or DELETE
    • JSON Payload: Request body for POST/PUT/PATCH requests
  3. Test (Developer Mode): Use the T button to test the endpoint

Configuration:

AFD MagLock Device

How to obtain eWeLink webhook URLs:

  1. Navigate to: https://web.ewelink.cc/#/home
    • Note: May require eWeLink subscription ($9/month plan)
  2. Create a new scene:
    • IF condition: Select “Webhook”
    • THEN action: Select your MagLock device and choose OFF
  3. Repeat step 2 for a second webhook to turn the MagLock ON
  4. Test URLs by pasting them into a web browser
    • Webhooks work from any device, anywhere with internet access
    • Confirm your MagLock responds correctly

Configuration:

Kill Switch

The Kill Switch provides emergency scene termination via a SwitchBot smart plug.

How it works:

Configuration:

Interface Preferences

Customize your PiLock interface behavior.

Configuration:

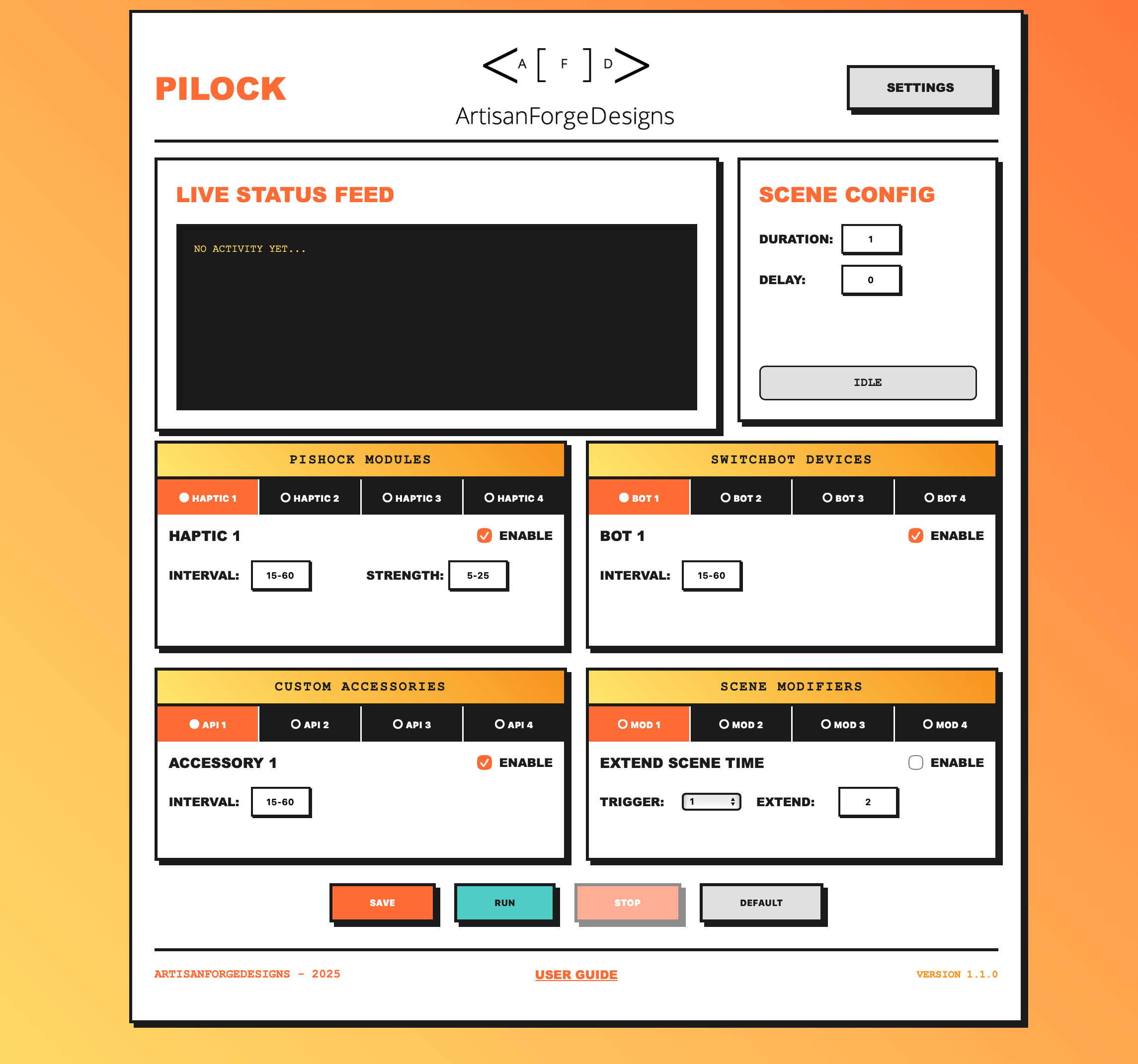

Dashboard & Scene Configuration

The dashboard is your main control center for creating and managing scenes.

Scene Configuration Panel

Scene Duration:

Initial Delay:

Device Controls

PiShock Modules (Haptic 1-4)

Each PiShock device has these configuration options:

Note: PiShock devices trigger unlimited times during scene duration according to interval settings.

SwitchBot Devices (Bot 1-4)

Each SwitchBot device has these configuration options:

Note: SwitchBot devices trigger unlimited times during scene duration according to interval settings.

Custom Accessories (API 1-4)

Each custom accessory has these configuration options:

Note: Custom accessories trigger unlimited times during scene duration according to interval settings. Configure endpoint and payload in Settings.

Live Status Feed

The status feed shows real-time updates:

Advanced Features

Scene Modifiers

Scene Modifiers allow dynamic changes to running scenes based on contact sensor triggers (or API endpoints). Each modifier can only execute once per scene, even if triggered multiple times.

Modifier 1: Extend Scene Time

Dynamically extends the running scene by additional minutes.

Configuration:

Behavior:

Modifier 2: Haptic Trigger

Enables and activates a PiShock device mid-scene.

Configuration:

Behavior:

Modifier 3: Bot Trigger

Enables and activates a SwitchBot device mid-scene.

Configuration:

Behavior:

Modifier 4: Custom Trigger

Enables and activates a Custom Accessory mid-scene.

Configuration:

Behavior:

Device State Preservation

PiLock automatically preserves and restores device states:

How it works:

  1. Before scene starts, PiLock saves current enabled/disabled state of all devices
  2. Scene Modifiers can enable devices mid-scene dynamically
  3. After scene ends (stopped or completed), original states are automatically restored
  4. Next scene starts with clean configuration (modifier changes don’t persist)

Benefits:

Large, highly-visible notifications for device actions (when enabled in Interface Preferences).

Features:

Audio Notifications

Text-to-speech announcements for scene events and device actions (when enabled in Interface Preferences).

Features:

Developer Mode Features

Enable Developer Mode in Interface Preferences to access advanced testing features:

Dry Run Mode

Test scenes without triggering real devices.

How to use:

  1. Configure your scene normally on the dashboard
  2. Click DRY RUN instead of RUN
  3. Scene executes with full timing, status messages, and notifications
  4. No actual API calls to devices are made

Benefits:

Test Buttons

Small T buttons appear next to configured devices when Developer Mode is enabled.

Available tests:

Visual feedback:

Basic Usage

Creating Your First Scene

  1. Configure Settings (one-time setup):
    • Click SETTINGS
    • Enter your SwitchBot and/or PiShock credentials
    • Configure any custom accessories or contact sensors
    • Click SAVE SETTINGS
  2. Set Up a Scene:
    • On the dashboard, set Scene Duration (e.g., 5 for 5 minutes)
    • Set Initial Delay if desired (e.g., 1 for 1-minute delay)
    • Enable devices you want to use (check ENABLE boxes)
    • Configure intervals and intensities for enabled devices
    • Optionally configure Scene Modifiers
    • Click SAVE
  3. Run the Scene:
    • Click RUN
    • Watch the header timer and status display show countdown
    • Devices activate according to your configuration
    • Click STOP to stop early if needed

Understanding Status Display

The compact status display in the Scene Config panel shows:

The header timer (replaces AFD logo when scene is running):

Scene Control Buttons

Using Scene Modifiers

Example workflow:

  1. Configure a modifier on the dashboard:
    • Enable “Modifier 2: Haptic Trigger”
    • Set Trigger to “1” (Contact Sensor 1)
    • Set Haptic to “2” (PiShock device 2)
    • Save configuration
  2. Configure the trigger in Settings:
    • Enter SwitchBot Contact Sensor Device ID in “Sensor 1 ID”
    • OR leave blank and use API endpoint: http://pilock.local:5001/trigger1
  3. Run a scene:
    • Start scene with PiShock 2 initially disabled
    • When contact sensor opens (or API endpoint called), PiShock 2 activates mid-scene
    • Dashboard automatically updates to show device enabled (○ → ●)
    • PiShock 2 begins triggering at configured intervals
    • After scene ends, PiShock 2 returns to disabled state

Frequently Asked Questions

General Usage

Q: The scene won’t start - what’s wrong?

A: Check that:

Q: Can I run multiple scenes at once?

A: No, only one scene can run at a time. Stop the current scene before starting a new one.

Q: What happens if I lose internet connection during a scene?

A: The scene will continue running, but device commands may fail. Check the status feed for error messages.

Q: Do Scene Modifier changes persist to the next scene?

A: No. PiLock automatically saves and restores device states before/after each scene. Modifier changes only affect the current running scene.

Device Configuration

Q: My PiShock device isn’t responding

A: Verify:

Q: SwitchBot commands aren’t working

A: Check:

Q: My smart lock isn’t responding to webhook calls

A: Ensure:

Q: Contact Sensor isn’t triggering my modifier

A: Verify:

Q: Custom Accessory isn’t working

A: Check:

Scene Behavior

Q: Why do my devices trigger at different times than expected?

A: PiLock uses interval as “time between triggers”, not “triggers per minute”. A 30-second interval means the device activates every 30 seconds throughout the scene.

Q: What does “random” mean for intervals and intensity?

A: Random values are calculated for each trigger. For example, 10-30 intensity will choose a random number between 10 and 30 for each activation.

Q: Can I have unlimited device triggers?

A: Yes. All devices trigger unlimited times during the scene duration according to their interval settings.

Q: The countdown shows wrong time

A: During the delay phase, countdown shows time remaining in delay. During scene execution, it shows scene time remaining. The header timer always shows total time left.

Q: Can a Scene Modifier trigger multiple times?

A: No. Each modifier can only execute once per scene, even if the trigger fires multiple times. This prevents accidental duplicate actions.

Q: Why did my device indicators change from ○ to ● during a scene?

A: A Scene Modifier was triggered and enabled that device mid-scene. The indicators update in real-time to show current device states.

Notifications

Q: Popup notifications are too small/large

A: Popup size is optimized for visibility from several feet away (500px x 300px minimum). Size automatically adjusts on mobile devices.

Q: Audio notifications aren’t playing

A: Check:

Q: How do I disable notifications?

A: Uncheck “Enable Popup Notifications” and/or “Enable Audio” in Settings → Interface Preferences.

Kill Switch

Q: Kill switch isn’t stopping the scene

A: Verify:

Q: Consequence endpoint isn’t being called

A: Check:

Developer Mode

Q: How do I test my scene without triggering devices?

A: Enable Developer Mode in Interface Preferences, then use the DRY RUN button instead of RUN. Scene will execute with full timing and notifications but no real API calls.

Q: Test buttons aren’t showing

A: Enable Developer Mode in Settings → Interface Preferences. Test buttons (T) will appear next to configured devices.

Q: What does a red test button mean?

A: Test failed. Check the status feed for error details and verify your configuration (API credentials, device IDs, endpoint URLs, etc.).

Updates

Q: How do I check for updates?

A: On the Settings page, click CHECK FOR UPDATES. If an update is available, you’ll see UPDATE and CANCEL buttons.

Q: Will updating overwrite my settings?

A: No. Updates only change the application code. Your settings and scene configurations in the data/ folder are preserved.

Q: What version am I running?

A: Check the footer at the bottom of any page for the current version number.
